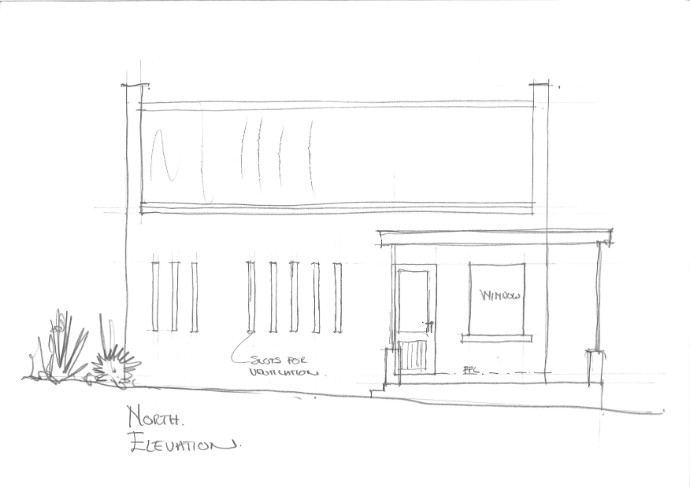

 These are drawings down by one of the senior architects at our firm which I Had top convert into AutoCAD.

 This Gaurd House is going to be for the security who will permanantly be on watch of a closed off housing complex. It had to have toilet facilities as the security always has to be there.

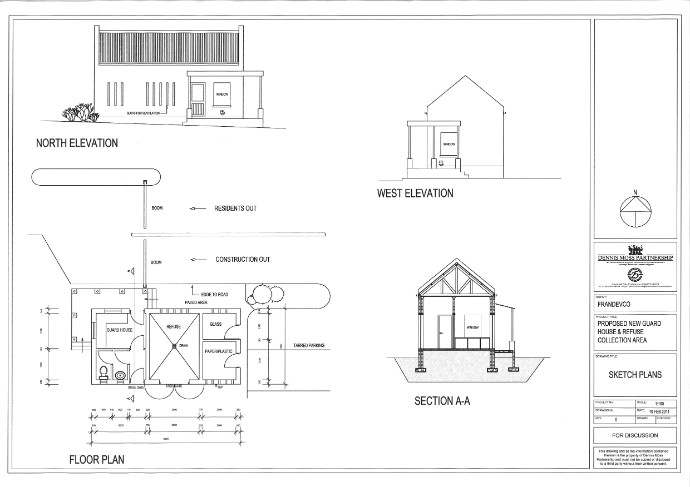

 This was the final idea, which I drew up, that was going to be proposed the the client.

 Q & A

1) What is the purpose of the drawing/information?

2) Who are the people for whom you have prepared the drawing/information?

3) Are there any other ways to provide the same drawing/information?

4) Explain the purpose of every component of the drawing/information mean (for example, why do you put certain dimensions on a specific drawing?)

1) The purpose of this drawing was to show the client how the entrance of an estate would look like. It will have a gaurd house for security reasons. 2) These drawings are for the repected clients of the project. 3) No 4) There is a plan with all the relevant dimensions to begin construction, elevations to give an indication of how it would look and a section to show the interior as well as the components that make the structure.
